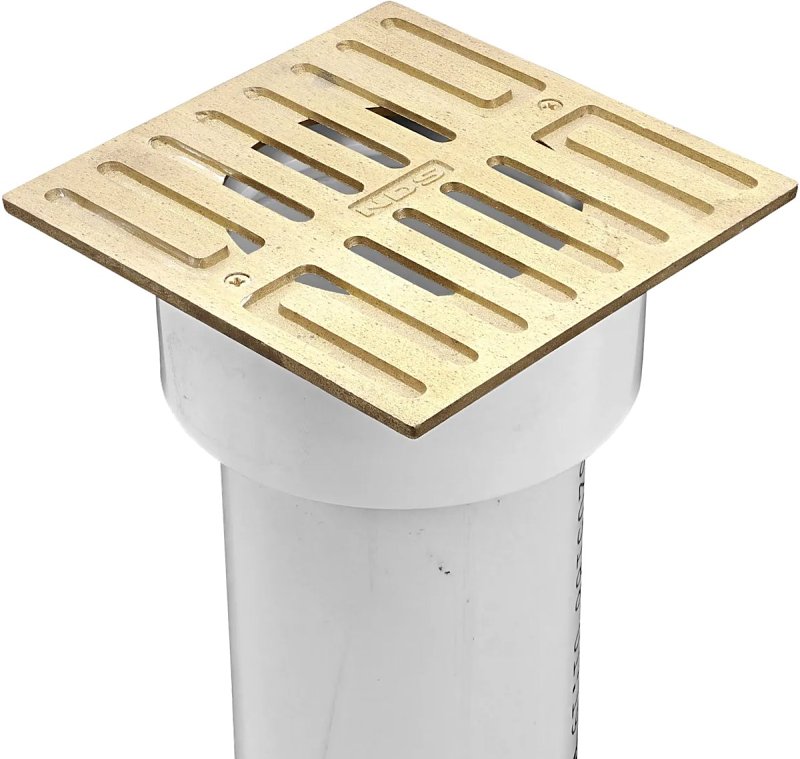

NDS 913B Grate with Collar, 4-3/4 in L, 4-3/4 in W, Square, 3/8 in Grate Opening, Brass/PVC, Satin Brass

NDS

NDS 913B Grate with Collar, 4-3/4 in L, 4-3/4 in W, Square, 3/8 in Grate Opening, Brass/PVC, Satin Brass

$54.99$54.99
NDS 913B Grate with Collar, 4-3/4 in L, 4-3/4 in W, Square, 3/8 in Grate Opening, Brass/PVC, Satin Brass
  • Color: Satin Brass
  • Grate Opening Size: 3/8 in
  • Length: 4-3/4
  • Material: Brass/PVC
  • Open Surface Area: 2.5 sq-in
  • Model #: 913B
  • UPC #: 052063591308
  • SKU: 0459776

Your shopping list will be used for pickup in-store

Product Details

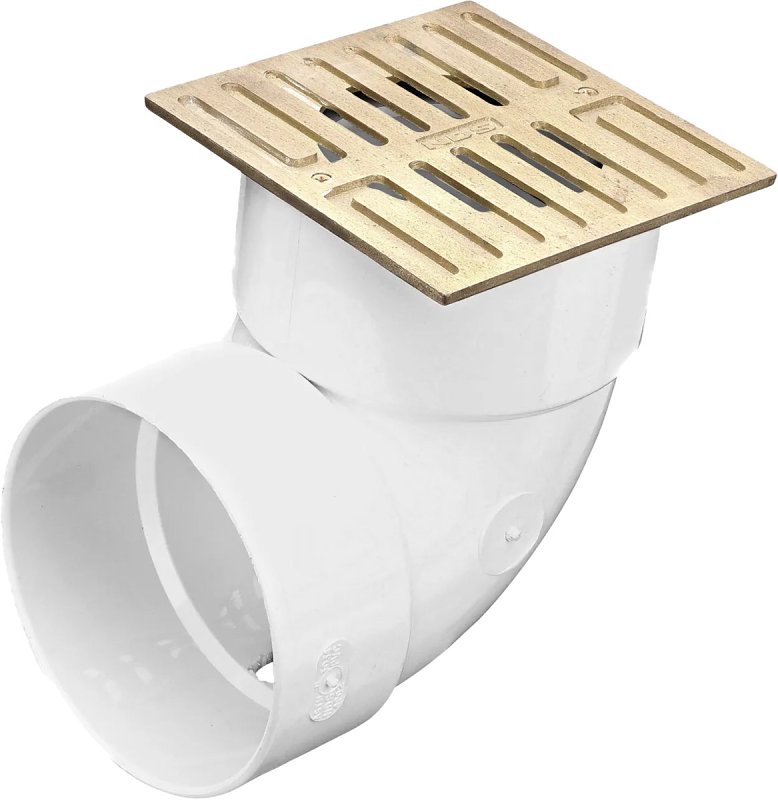

The brass drain grate with PVC collar presents a stylish look as it drains light flows from small lawns, landscaped areas, patios and walkways. The rust and corrosion-resistant drain grate, also known as a drain cover, is fitted on a polyvinyl chloride collar that connects to pipe. Stormwater flows in, while leaves and debris are blocked from entering and potentially clogging the pipeline. Features an open surface area of 2.5 sq-in and 8 gpm flow rate. Ideal for draining light flows from small lawns, landscaped areas, patios, and walkways. The 5 in square grate with collar connects to 3 in sewer and drain pipe, 3 in triple-wall pipe and 4 in sewer and drain fittings. The brass grate is-resistant to rust and corrosion and fitted onto a polyvinyl chloride collar treated with UV inhibitors.

Key Features

  • Grate is 1-3/4 in H, top is 4-3/4 in square, grate openings are 3/8 in W
  • Protect your drainage system by using a grate on top of drain pipe to block debris from entering and potentially clogging the pipeline while letting excess surface water flow through
  • Works with connected drain pipe to capture and convey excess surface water for proper release downstream

Item Specifications

ColorSatin Brass
Grate Opening Size3/8 in
Length4-3/4
MaterialBrass/PVC
Open Surface Area2.5 sq-in
ShapeSquare
Width4-3/4
Working Pressure1 to 60 psi
MORE DETAILS:
  • Application: For draining light water flows from small lawns, landscaped areas, patios and walkways
